Premium lightweight carbon fabrics and UD tapes

SpreadCarbon: expertise in tow spreading technology
Innovative in-house developed spreading and weaving process

Fabrics

Precision spreading and stable high quality
Fixed by powder binder: easy cutting and handling

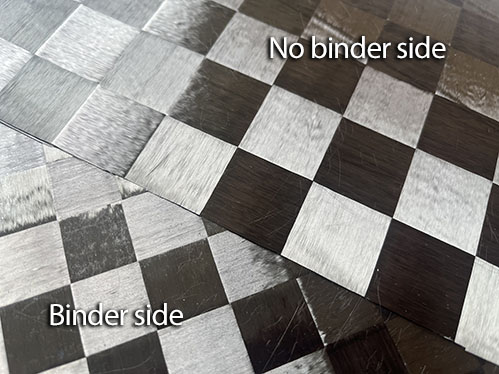

Minimum binder amount: no print to the face surface
Good for hotmelt prepreg processing

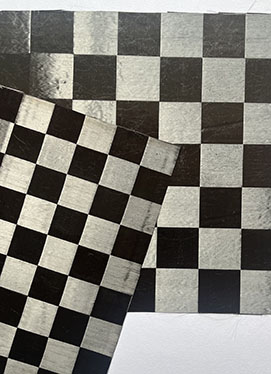

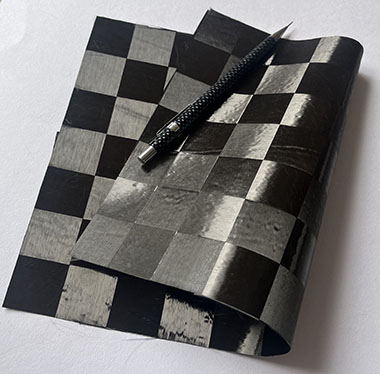

SpreadCarbon fabric

SpreadCarbon fabric

SpreadCarbon fabric

Title	Carbon fiber	Fiber weight [ g/m2 ]	+Binder [ g/m² ]	Total weight [ g/m² ]	Tape width [ mm ]
F-60	UTS50 5100 MPa 245 GPa	60	4	64	27
F-80	UTS50 5100 MPa 245 GPa	80	4	84	20
F-107-S	SYT49S 4900 MPa 240 GPa	107	4	111	15
F-120-S		120	5	125	27
F-150-S		146	5	151	22
F-60-M	SYT55S 5900 MPa 295 GPa	60	4	64	15
F-82-M	SYT55S 5900 MPa 295 GPa	82	4	86	22
F-55-H	HR40 4410 MPa 375 GPa	55	4	59	22

UD tapes

Wide tape (up to 300mm width) or single-tow tape format
Lightweight UD-prepreg can be produced using the hotmelt processing

Title	Carbon fiber	Fiber weight [ g/m2 ]	+Binder [ g/m² ]	Total weight [ g/m² ]	Tape width [ mm ]
FT-30	UTS50 5100 MPa 245 GPa	30	2	32	27
FT-40	UTS50 5100 MPa 245 GPa	40	2	42	20
FT-53-S	SYT49S 4900 MPa 240 GPa	53	2	55	15
FT-60-S		60	3	63	27
FT-73-S		73	3	76	22
FT-30-M	SYT55S 5900 MPa 295 GPa	30	2	32	15
FT-41-M	SYT55S 5900 MPa 295 GPa	41	2	43	22
